Engineered for Excellence

Our industrial pump portfolio

Magnevo® sealless magnetic-drive pumps are designed to deliver exceptional performance, reliability, and durability across a wide range of industrial applications. Featuring five pump families, seventeen hydraulic sizes, and flow capacities from 5 to 150 GPM, each pump is engineered with advanced magnetic-drive technology, premium industrial motors, and robust corrosion-resistant construction. Enhanced dry-run protection and carbon-graphite bearing systems help reduce maintenance requirements while maximizing operational uptime in the most demanding environments.

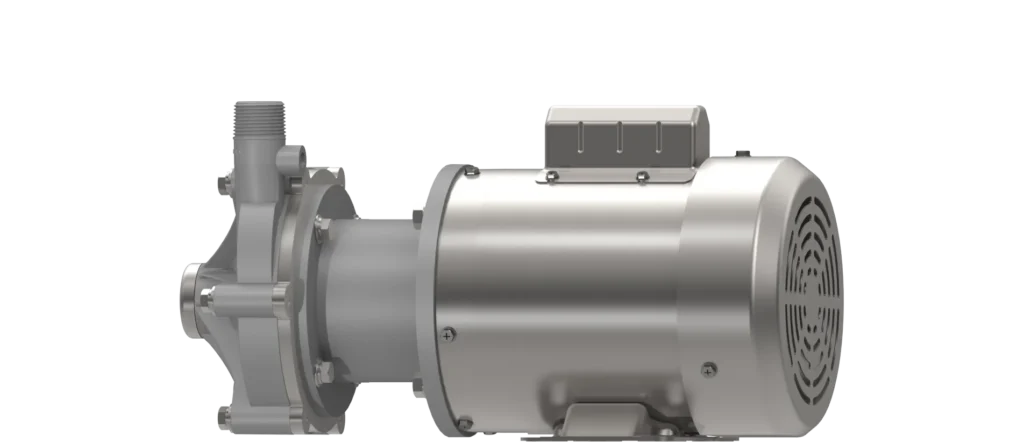

MC4 Series

Magnevo MC4 Series magnetic-drive pump curves with NPSHr, motor horsepower and efficiencies

Specifications

  • 1″ FNPT Suction
  • 1″ MNPT Discharge
  • Max Flow: 28 gpm
  • Max Head: 21′
  • 0.5 hp
  • Single Phase

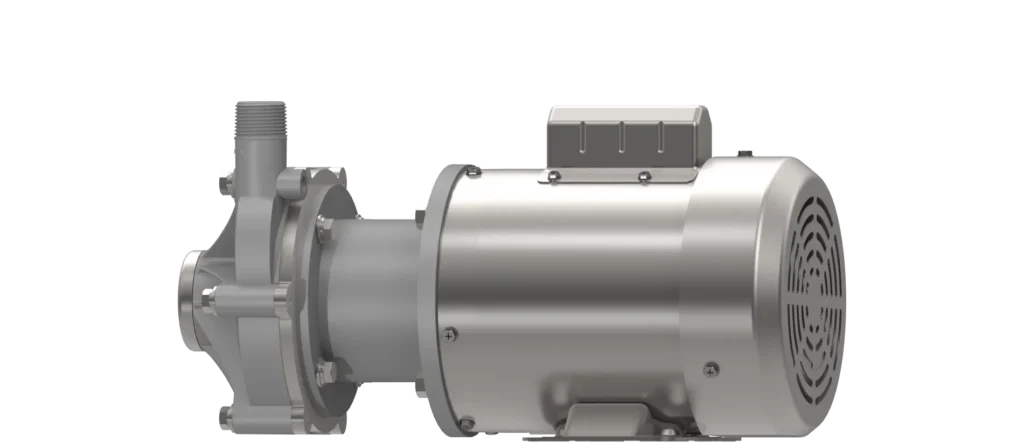

MC6 Series

Magnevo MC6 Series magnetic-drive pump curves with NPSHr, motor horsepower and efficiencies

Specifications

  • 1.5″ FNPT Suction
  • 1″ MNPT Discharge
  • Max Flow: 60 gpm
  • Max Head: 46′
  • 0.5 hp
  • Single Phase

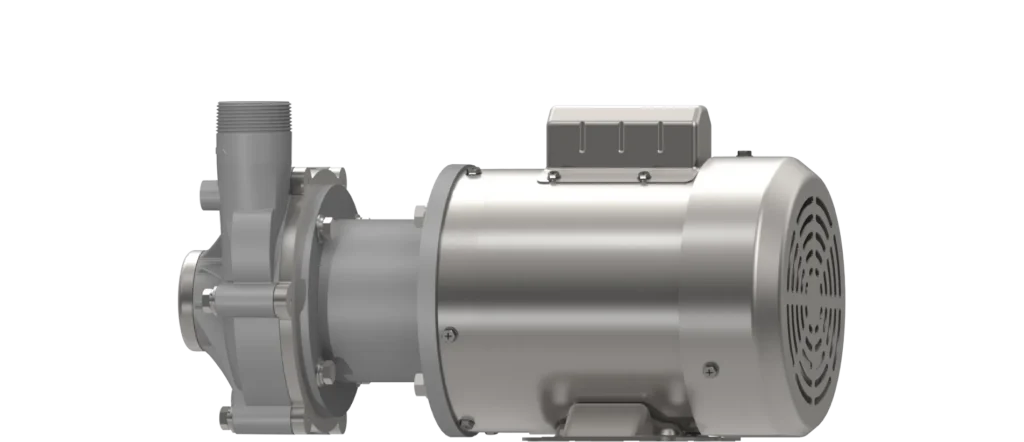

MC10 Series

Magnevo MC10 Series magnetic-drive pump curves with NPSHr, motor horsepower and efficiencies

Specifications

  • 1.5″ FNPT Suction
  • 1.5″ MNPT Discharge
  • Max Flow: 95 gpm
  • Max Head: 59′
  • 0.5 and 1 hp
  • Single Phase

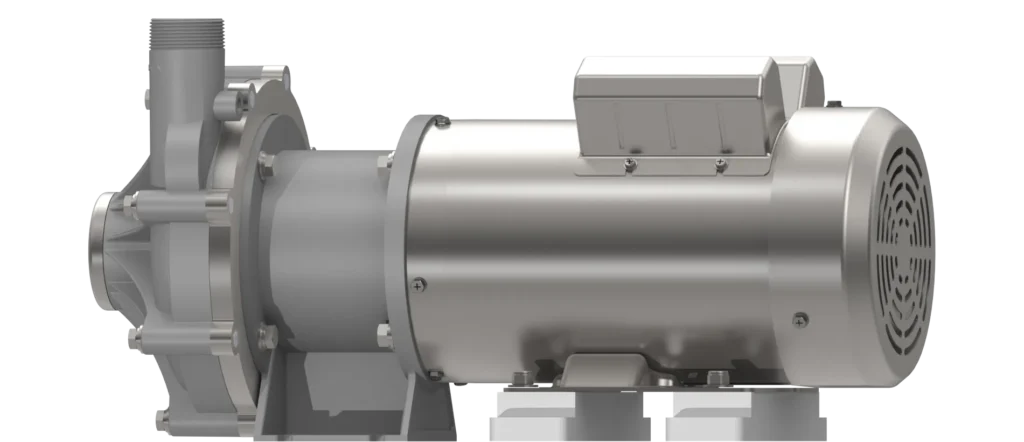

MC13 Series

Magnevo MC13 Series magnetic-drive pump curves with NPSHr, motor horsepower and efficiencies

Specifications

  • 2″ FNPT Suction
  • 1.5″ MNPT Discharge
  • Max Flow: 125 gpm
  • Max Head: 90′
  • 1.5, 2 and 3 hp
  • Single and 3 Phase

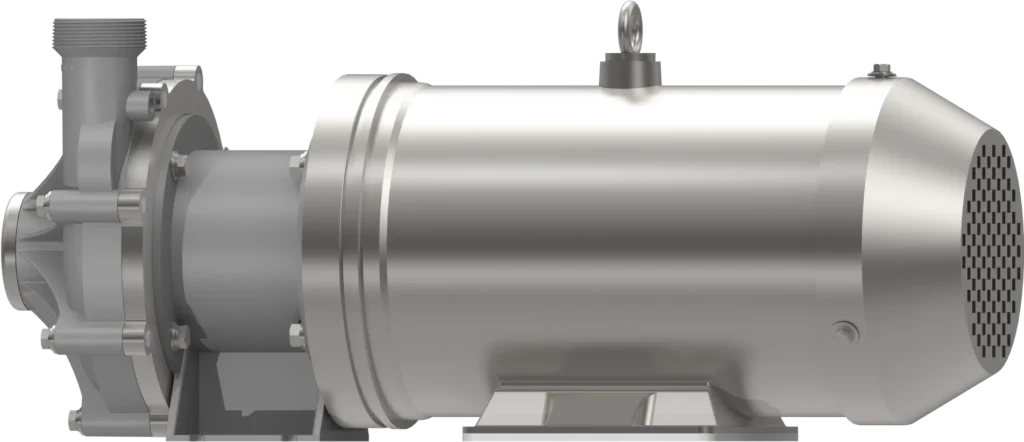

MC15 Series

Magnevo MC15 Series magnetic-drive pump curves with NPSHr, motor horsepower and efficiencies

Specifications

  • 2″ FNPT Suction
  • 2″ MNPT Discharge
  • Max Flow: 150 gpm
  • Max Head: 121′
  • 5 hp
  • Three Phase
