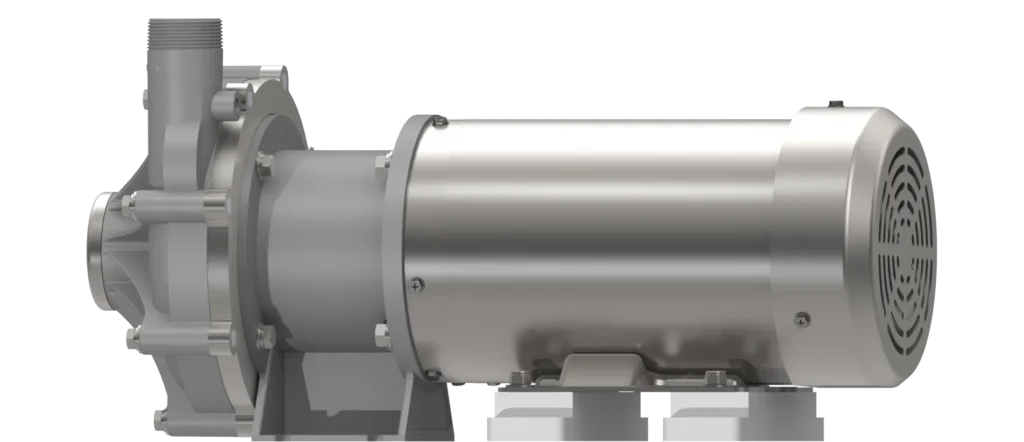

MC13 Series
Magnetic-drive centrifugal pump
Magnevo™ Pumps’ MC13 Series pumps feature a sealless magnetic-drive to ensure reliable performance and unparalleled pump durability.
Features
- Magnetic drive with no shaft seals for long life
- Rugged glass fiber-reinforced composite construction will not rust, tarnish, or corrode
- 316L-reinforced inlet
- Stainless TEFC washdown motor
- Stainless-steel hardware
- Dual-voltage multi-frequency 60/50 Hz capable motor (wiring dependent)
*Features reflect standard offering and may change with different options.
MC13 Series Models
MC13-410-11D-1 1/2T
| MC13-410-11D-1 1/2T | |
|---|---|
| FNTP SUCTION | 2.0" |
| MNTP SUCTION | 1.5" |
| IMPELLER | 410 |
| HORSEPOWER | 1.5 |
| TYPE | TEFC |
| PHASE | 1 |
| VOLTAGE | 115/230 |
| FREQUENCY (Hz) | 60/50 |
| CURRENT (Amps) | 17/8.5 |
| LENGTH | 20.19″ |
| MOTOR HEIGHT | 8.7″ |
MC13-438-11D-1 1/2T
| MC13-438-11D-1 1/2T | |
|---|---|
| FNTP SUCTION | 2.0" |
| MNTP SUCTION | 1.5" |
| IMPELLER | 438 |
| HORSEPOWER | 1.5 |
| TYPE | TEFC |
| PHASE | 1 |
| VOLTAGE | 115/230 |
| FREQUENCY (Hz) | 60/50 |
| CURRENT (Amps) | 17/8.5 |
| LENGTH | 20.19″ |
| MOTOR HEIGHT | 8.7″ |
MC13-463-11D-2T
| MC13-463-11D-2T | |
|---|---|
| FNTP SUCTION | 2.0" |
| MNTP SUCTION | 1.5" |
| IMPELLER | 463 |
| HORSEPOWER | 2 |
| TYPE | TEFC |
| PHASE | 1 |
| VOLTAGE | 115/230 |
| FREQUENCY (Hz) | 60/50 |
| CURRENT (Amps) | 19/9.5 |
| LENGTH | 20.19″ |
| MOTOR HEIGHT | 8.7″ |
MC13-488-23D-3T
| MC13-488-23D-3T | |
|---|---|
| FNTP SUCTION | 2.0" |
| MNTP SUCTION | 1.5" |
| IMPELLER | 488 |
| HORSEPOWER | 3 |
| TYPE | TEFC |
| PHASE | 3 |
| VOLTAGE | 230/460 |
| FREQUENCY (Hz) | 60/50 |
| CURRENT (Amps) | 3.6/8 |
| LENGTH | 20.6″ |
| MOTOR HEIGHT | 7.2″ |
